Saturday, October 15, 2016

How I Added a Laundry to My Camper and You Can Too!! PLUS MORE HIDDEN STORAGE!

Eight weeks on the road is going to be a lot nicer! We now have a wonderful laundry! If you can find 18"x18"x35" you can have a wonderful laundry room too!! Here's how I did it.

Amazing! Add a washer to your camper or tiny house! only 18" - full tutorial!
Amazing! Add a washer to your camper or tiny house! only 18" - full tutorial!

 Remember, out camper is smaller than our truck.

Amazing! Add a washer to your camper or tiny house! only 18" - full tutorial!

First I bought a Haier HLP21N Washing Machine


Then I found a place to put it - The existing wardrobe & shelf were just the right fit.

Amazing! Add a washer to your camper or tiny house! only 18" - full tutorial!


First I removed the door & shelf

There was a "2x4" area across the back that I thought was structural, but when I took the decorative molding off, it was just some wires

Amazing! Add a washer to your camper or tiny house! only 18" - full tutorial!

 - so I covered them with a wire protector. They will not be in the way of the washer.

Amazing! Add a washer to your camper or tiny house! only 18" - full tutorial!

The camper bathroom is right on the other side of this wall. This makes it simple to route the water & drain lines to the washer. I wanted to see what was in the wall before I drilled through it.

Amazing! Add a washer to your camper or tiny house! only 18" - full tutorial!

Turns out that it has a vent pipe running up it, which makes it 3 1/2" thick! That's wonderful! I have plans for this space!

I moved the wardrobe door to the top of the doorway. This area will become our new closet.

Amazing! Add a washer to your camper or tiny house! only 18" - full tutorial!


Next I built a panel that exactly fit into the doorway.


Amazing! Add a washer to your camper or tiny house! only 18" - full tutorial!

I attached molding across the top and bottom that is screwed to the wardrobe with 4 easily accessible screws. This way if I need to get the washer out for any reason, I can quickly remove the panel.

The Propane/Carbon Monoxide Detector is located in the front panel of this area.
There is 3/4" inch within the frame of the front wall, so if I box it out a bit with a frame, the detector won't extend into the 'laundry'.  This is important because the washer just fits exactly and I didn't want to put pressure on the detector or the washer.

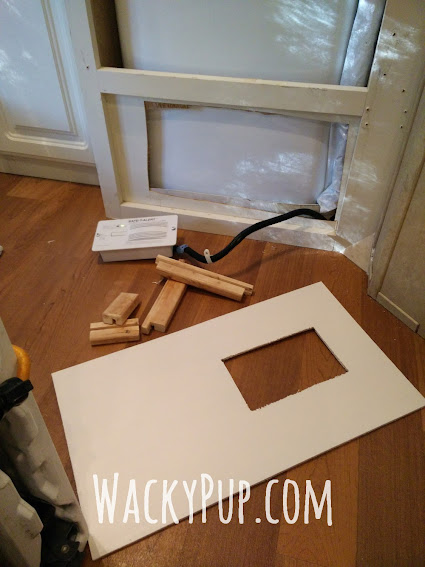

First I removed the existing front panel and made a new panel with a hole a little larger than the alarm. This panel will fit across the front of the frame, which gives me the 3/4" clearance I need.

Amazing! Add a washer to your camper or tiny house! only 18" - full tutorial!

I then cut the frame pieces with a channel that slips over the face of the panel

Amazing! Add a washer to your camper or tiny house! only 18" - full tutorial!

First the two on top & bottom


Then slip in the two side pieces.

Amazing! Add a washer to your camper or tiny house! only 18" - full tutorial!

Put the alarm in, and screw it down.  I moved the sides in tight. I could have cut the top/bottom pieces to be flush, but the saw is a long way from the camper lol, besides I think it makes it look like lincoln logs.

Amazing! Add a washer to your camper or tiny house! only 18" - full tutorial!

You can see that the alarm is protected front and back.

Amazing! Add a washer to your camper or tiny house! only 18" - full tutorial!

Mounted it to the front of the "Laundry Room"

Amazing! Add a washer to your camper or tiny house! only 18" - full tutorial!

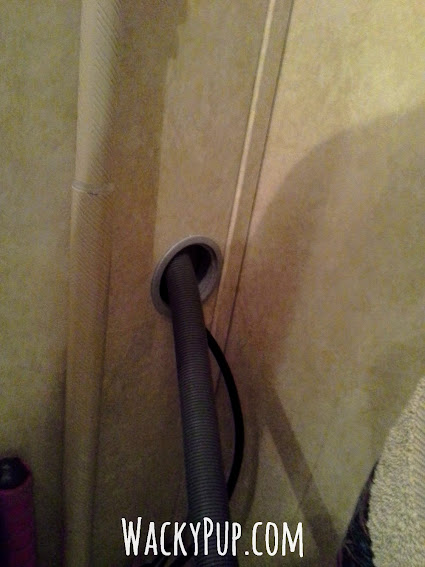

Next I drilled through the bathroom wall for the water and drain hoses. When the washer is not in use, they will not be hanging out :)

Amazing! Add a washer to your camper or tiny house! only 18" - full tutorial!

Looks great!

Amazing! Add a washer to your camper or tiny house! only 18" - full tutorial!

But what about the inside? where will the clothes go?

Amazing! Add a washer to your camper or tiny house! only 18" - full tutorial!

Our new wardrobe!! Much nicer, actually - we don't have to bend down to see what's in there. It even has a light now!


Amazing! Add a washer to your camper or tiny house! only 18" - full tutorial!

The wardrobe 'floor' is a sturdy removable shelf that lifts out when we want to use the washer.

 We gained great storage with the 3 1/2" wall. I added about 5 feet of 4 1/2" shelving!! Right now I mostly have empty boxes & bottles on there to see what will fit
- oh and the laundry soap and clothespins!!

Two shelves were specially sized for paperback books.  Each shelf has an eye on one end and a hook on the other. A 10" bungee cord holds everything securely.

Amazing! Add a washer to your camper or tiny house! only 18" - full tutorial!

Usually you can get things in and out without releasing the cord, but if you have to release it, the cuphook as the front hook makes it easy to attach it back.

The shelving is simple.

Amazing! Add a washer to your camper or tiny house! only 18" - full tutorial!

First attach the brackets, then nail the shelf on top.
 A brad nailer makes the job quick and easy!



This is the one i have and I love it!!

Can't wait to go camping!!!

Coming soon, a post on how we moved the TV and hung it with invisible reinforcement.

Now, go outside and play!!

2 comments:

  1. Can you do your bed linens in the Haier or do you need to go to a laundry? I'd love to add a washer, but if I need to go to laundry every week or two, I'm not sure the money and effort would be worth it.

    ReplyDelete
    Replies
    1. We added the washer at the end of our camping season, so I really haven't used it yet except for a load to test it. However, others have said that they wash towels and sheets in it and it looks large enough to handle it. I will update after I actually wash sheets in it and let you know.
